INDUSTRIAL EVAPORATIVE PRECOOLERS
Industrial Pre-Cooler Installation on Gas Turbine Intake
INTRODUCTION TO SOME TYPICAL PRE-COOLER
APPLICATIONS:
The performance of most, if not all air cooled heat
generating equipment decreases inversely
with temperature rise.
A common example of this is the air cooled
condenser coils of air
conditioners. This is illustrated in the following example of a Typical
Trane Chiller Model
RTAC250STD, commonly referred to as a 240 Ton Chiller.
Typical operational characteristics of this unit
|
Water Temp Out |
AMBIENT TEMPERATURE (F) |
|||||||||||
|
85F |
95F |
105F |
115F |
|||||||||
|
|
TONS |
KW IN |
EER |
TONS |
KW IN |
EER |
TONS |
KW IN |
EER |
TONS |
KW IN |
EER |
|
42F |
244.8 |
247.9 |
10.9 |
229 |
268.5 |
9.5 |
212.7 |
292 |
8.2 |
195.7 |
318.2 |
6.9 |
|
|
||||||||||||

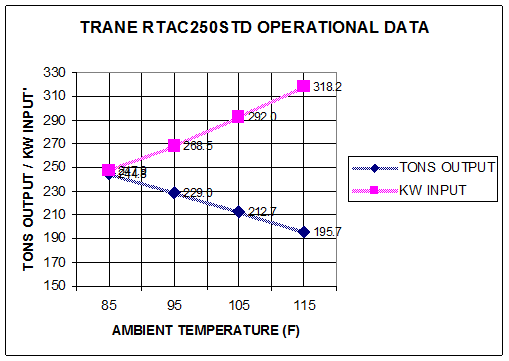

The graph below illustrates this effect.
Industrial Evaporative
Pre-coolers when properly designed and installed presents to the condenser coils
(or equipment) cooler air temperatures that allows the equipment to operate at
or near their optimum design level.
Following are some examples of custom Pre-cooler installation plans. Each
installation requires consideration for the existing conditions of space,
operational characteristics of the equipment, climate, ease of access for
maintenance, etc.
Directory to custom Precooler applications:
Click on the unit description or picture to go to the
installation data:

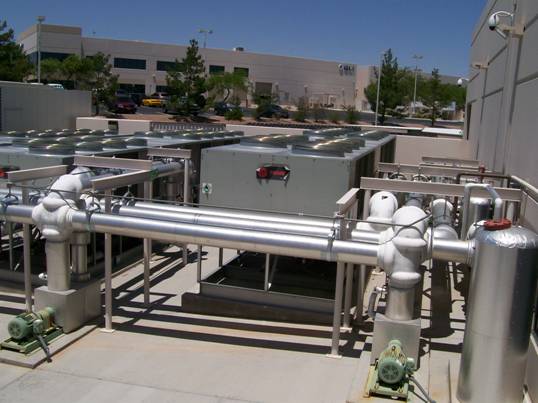

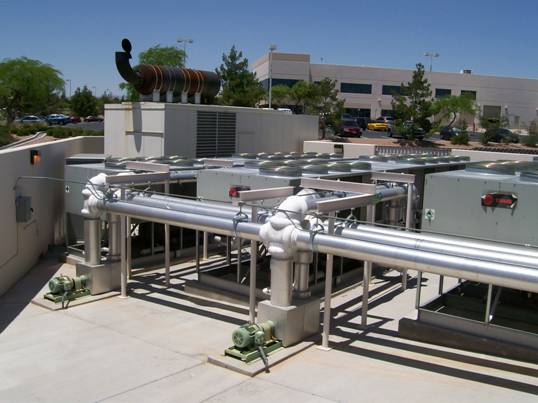

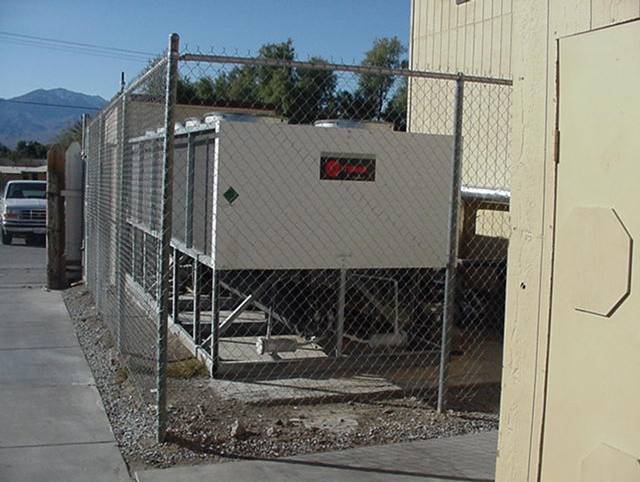

(3) Trane 240 ton chillers:
LEFT SIDE VIEW
RIGHT SIDE VIEW

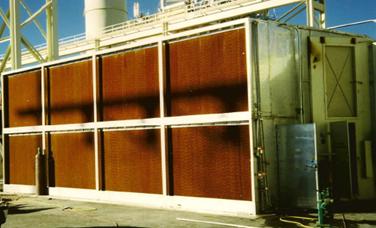

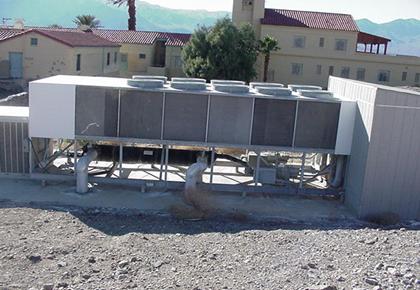

Carrier 125 ton chillers, precooler enclosure: Carrier 125 ton chiller, precooler direct attachment.

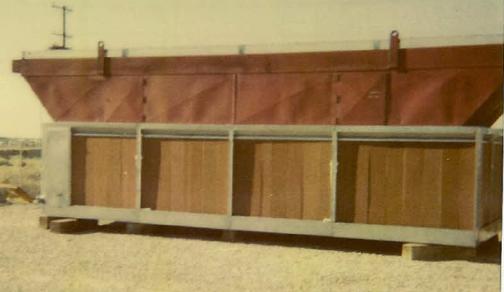

Fin-Fan type Unit with Precooler attached:
Gas Turbine Inlet Air Precooler:

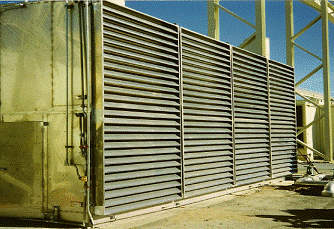

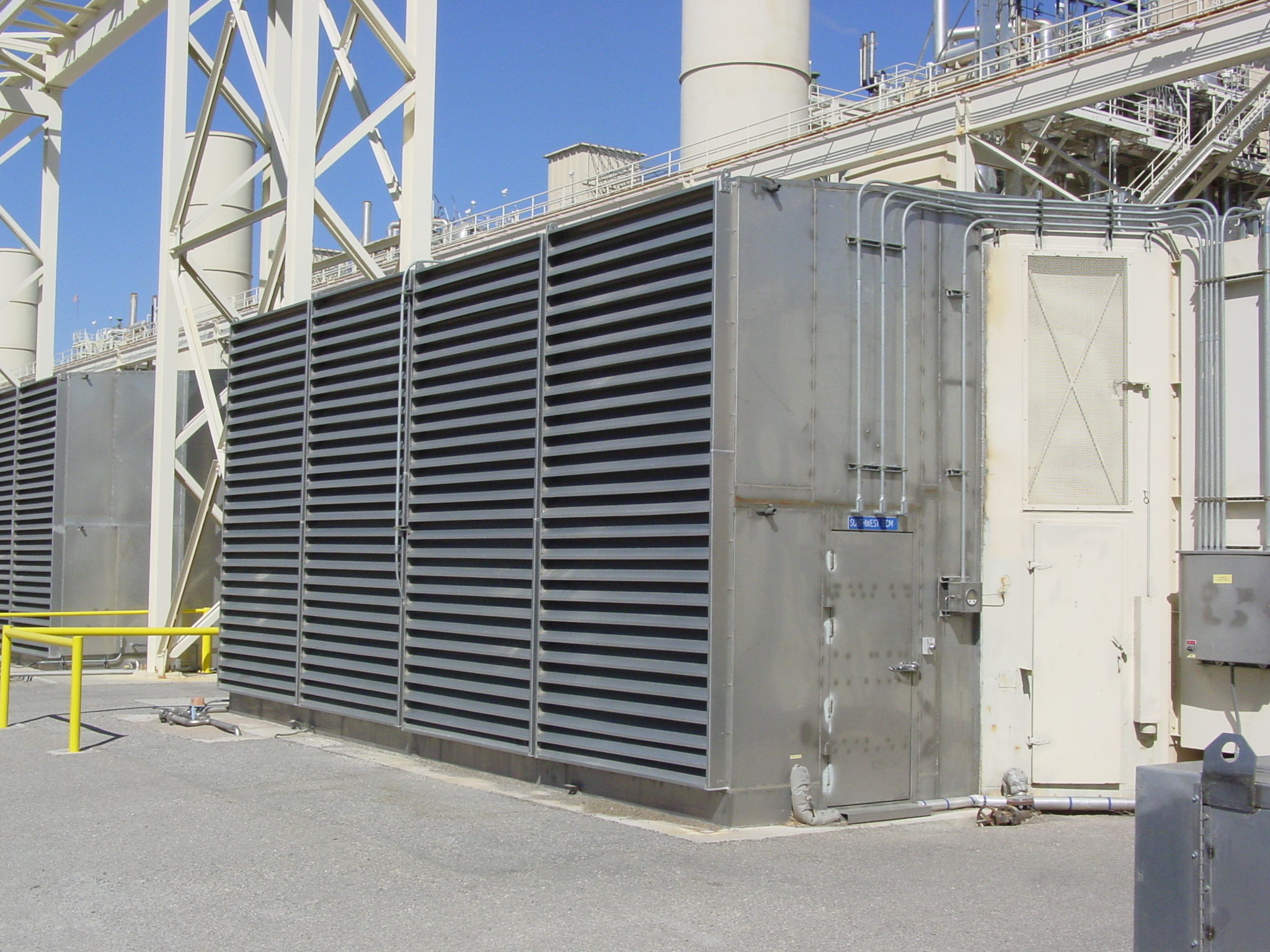

Industrial Precooler on Gas Turbine without face louvers Industrial Precooler on Gas Turbine with face louvers
Click on the link below to go to the home page of Premier Industries, Inc. for more information about evaporative cooling and precooling.
